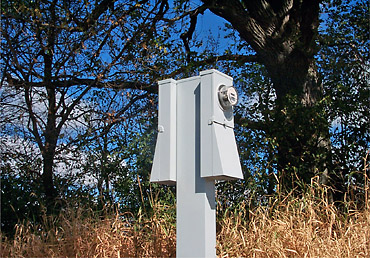

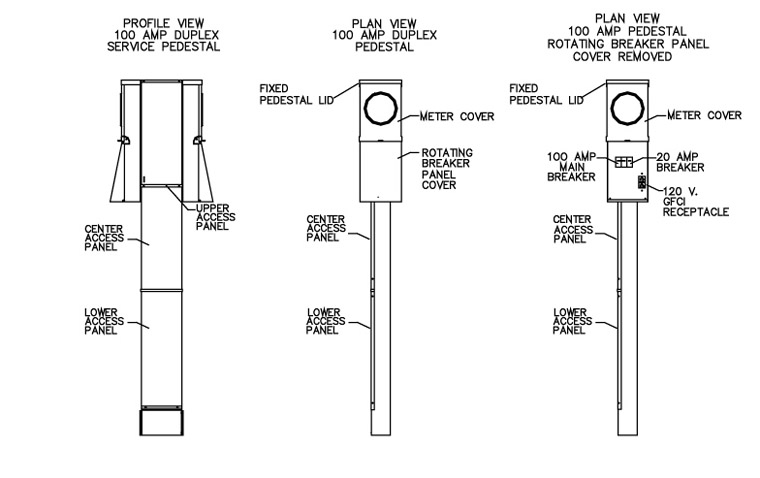

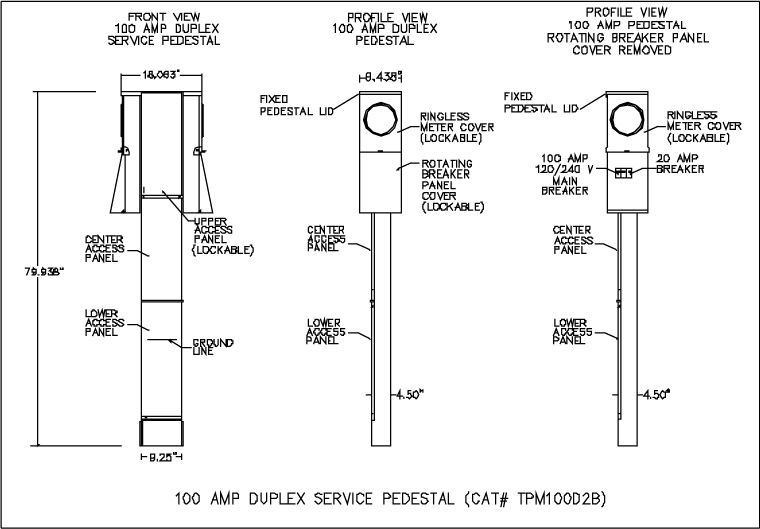

100 Amp Metered Mobile Home Electrical Service Pedestal

The Electrical Materials Company Mobile Home Electrical Service Pedestal provides rainproof 100 Amp 120/240V electrical service for mobile homes.

There are two models available. The first model has a single powerhead which can provide service to one mobile home and the second model has a duplex powerhead which can provide service to two mobile homes.

Features:

• Fully factory wired.


• 100A main circuit breaker.


• 20A circuit breaker.


• Knockouts for conduit connection.


• Ringless Meter Cover and Meter Jaw Assembly fits standard 100 amp round meters.


• Meter not included, must be supplied by others.


• Lockable Meter Cover, Rotating Cover and Upper Access Panel.


• Galvaized Steel with durable powder coat paint for long lasting finish.


• Gray color is standard, but other colors available upon request.
