RV Power Pedestals with Meter Compartments

The Electrical Materials Company RV Power Pedestals with Meter Compartments offer the ability to meter electrical service for individual sites in campgrounds and RV parks. All of our RV power pedestals with meter compartments are UL listed, rated 120/240 V and the pedestals are NEMA 3R rainproof enclosures. Each pedestal is equipped with a factory wired meter socket rated to 100 amps continuous, ring-less meter cover, receptacles and circuit breakers. The 100 amp RV Pedestal with Meter Compartment shown below (Cat# RVMPED), is equipped with 50, 30 and 20 amp receptacles and circuit breakers. Other receptacle/circuit breaker configurations are available as well. In addition, many of the RV Pedestal with Meter Compartment models are also UL listed for use as temporary service equipment.

Features:

• Fully factory wired.

• 20A 125V Duplex GFCI Receptacle.

• 30A 125V Nema 30-TTR Receptacle.

• 50A 125/250V Nema 14-50R Receptacle.

• 20, 30 and 50 Amp Circuit Breakers.

• Alternate receptacle and breaker configurations available upon request.

• Ringless Meter Cover and Meter Jaw Assembly fits standard 100 amp round meters.

• Meter not included, must be supplied by others.

• Lockable Meter Cover, Rotating Cover and Upper Access Panel.

• Galvaized Steel with durable powder coat paint for long lasting finish.

• Gray color is standard, but other colors available upon request.

UL Listed

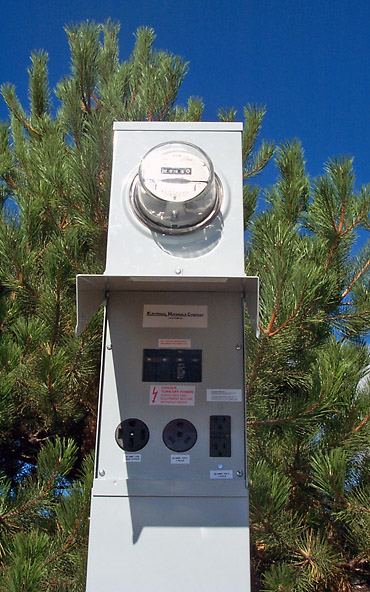

100 Amp RV Electrical Service Pedestal - Metered

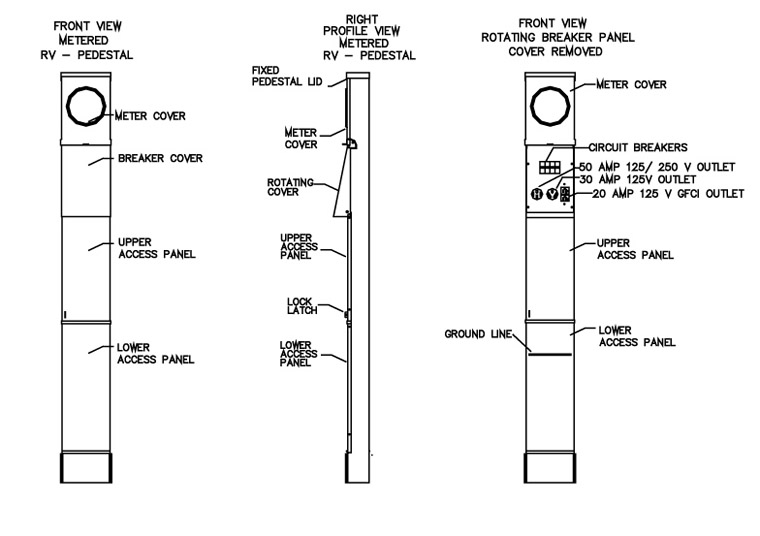

100 Amp RV Electrical Service Pedestal - Metered, Diagram
